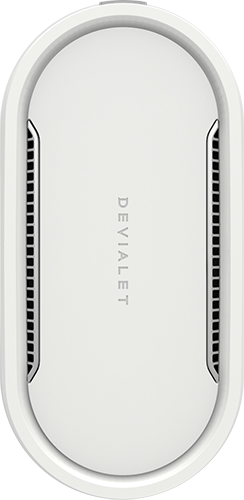

DIALOG |
REMOTE |
|
|
Implozīva skaņa
The best wireless speaker in the world

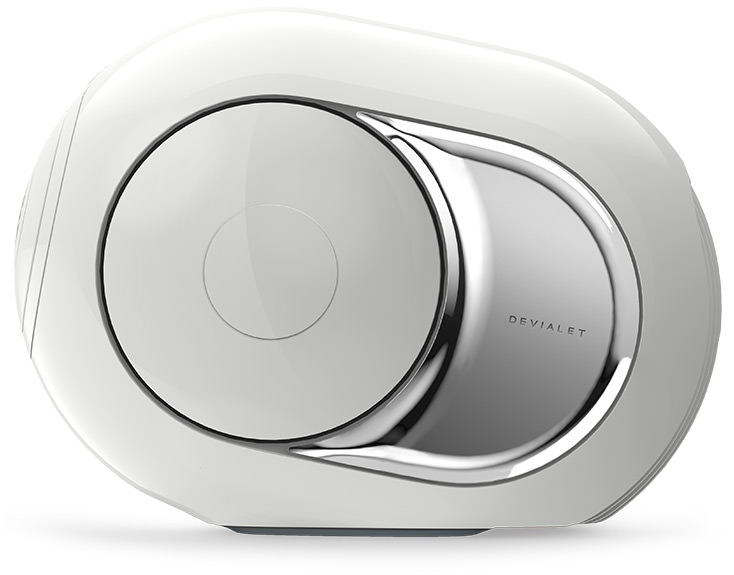

PHANTOM
For the first time, experience ultra-dense sound with physical impact.
A power, clarity, and preciseness unlike anything you have ever heard before.
Phantom is unique. More than a connected speaker, Phantom emits sound using a revolutionary and inherently superior process created by Devialet engineers: Patented Devialet inventions ADH and HBI.
Inventions patented by Devialet ADH® and HBI®.
Invented and made in France, protected by 108 patents, Phantom forever changes the world of sound.
| PHANTOM | SILVER PHANTOM | GOLD PHANTOM | |
|
Performance |
|||
| Sound Pressure Level | 99 dB SPL at 1 meter | 105 dB SPL at 1 meter | 108 dB SPL at 1 meter |
| Amplification Power | 750 W peak | 3000 W peak | 4500 W peak |
| Amplifiaction Performances | |||
| Total Harmonics Distortion + Noise | 0,001% | 0,0005% | |
| Saturation | 0 | 0 | |
| Backround Noise | 0,5 dB SPL at 3m | 0 dB SPL at 50cm (-15 dB at 3m) | |
| Acoustical Performance | |||
| Bandwith | 16 Hz to 25 kHz (@ -6 dB) | 14 Hz to 27 kHz (@ -6 dB) | |
| Accuracy frequency response | ± 2 dB from 20 Hz to 20 kHz | ± 2 dB from 20 Hz to 20 kHz | |
| Characteristics | |||
| Loudspeakers | Aluminium Tweeter driver | Titanium grade 1 Tweeter driver | |
| Aluminium Medium driver | Aluminium Medium driver | ||
| Aluminium Bass driver | Aluminium Bass driver | ||
| Digital to Analog Converter | Texas Instruments PCM1798 | Devialet DAC | |
| 24bits/192kHz | 24bits/192kHz | ||
| THD: -106 dB | THD: -112 dB | ||
| Processor |
ARM Cortex-A9 MPCore 800MHz dual-core processor, hard IP, and FPGA in a unique System-On-Chip (SoC) Cyclone V, 512MB DDR3 memory |
||
| Materials |
Composite body, Internal skin: glass fiber filled polycarbonate, External skin: ABS, Aluminium central core |
||
| Colors and Finish | |||
| Body | White RAL 9016 | White RAL 9016 | White RAL 9016 |
| Sides | Polished stainless steel | Sand-blasted stainless steel | 22-carat rose gold-plated |
| Dome drivers | White RAL 9016 | Silver | White RAL 9016 |
| Measurements | |||
| Size | Width: 253 mm · Height: 255 mm · Depth : 343 mm | ||
| Weight | 11,4 kg | ||
| Power | IEC 90-240 V~50/60Hz | ||
